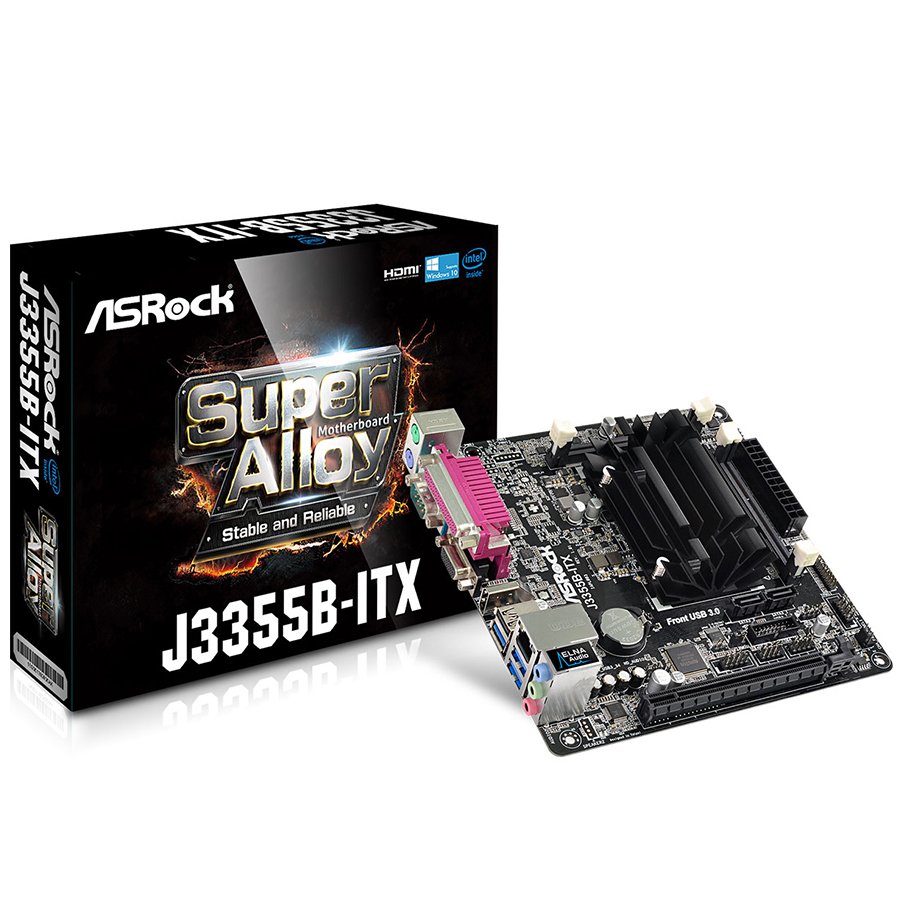

ASROCK Main Board Desktop (J3355 2.5GHz, DDR3 SO DIMM, 1xPCI 2.0×1,HDMI,VGA, 8ch, GLan,SATAIII,COM, LPT) Mini-ITX Box
Availability:
Изчерпан
ASROCK Main Board Desktop (J3355 2.5GHz, DDR3 SO DIMM, 1xPCI 2.0×1,HDMI,VGA, 8ch, GLan,SATAIII,COM, LPT) Mini-ITX Box
69,85 €
Изчерпан
Технически спецификации
| CPU Installed Name | Intel Celeron Processor J3355 |
| CPU Installed Quantity | 1 |
| CPU Core Quantity | 2 |
| Internal Clock Rate | 2.5 GHz |
| Installed L2 Cache Memory Storage Capacity | 2 KB |
| CPU Socket Standard | Socket 1296 |
| Memory Type | DDR3 SDRAM |
| Memory Form Factor | SODIMM 204-pin |
| Memory Speed | 1333MHz(PC3-10600) <br/>1600MHz(PC3-12800) <br/>1866MHz(PC3-14900) |
| Maximum Installable System Memory Storage Capacity | 16 GB |
| Memory Slot Total Quantity | 2 |
| Provides Error Checking Method | non-ECC |
| Memory Features | Two DDR Channels <br/>Unbuffered |
| Storage Controller Type | SATA III |
| Storage Controller Form Factor | integrated |
| Video Controller Integrated | yes |
| Video Chipset | Intel HD Graphics 500 |
| Video Memory Type | Shared Video Memory |
| Audio Integrated | yes |
| Device Location | Integrated |
| Audio Chipset | Realtek ALC887 |
| Audio Output Mode | 7.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio <br/>ELNA Premium Audio Capacitors |
| LAN Integrated | yes |
| LAN Chipset | Realtek RTL8111GR |
| Data Link Protocol Supports | Gigabit Ethernet/Fast Ethernet/Ethernet |
| PCI Express 2.0 x16 Slot Quantity | 1 |
| PS/2 | 2 |
| Parallel | 1 |
| Serial | 1 |
| VGA | 1 (15-pin D-sub) |
| HDMI | 1 |
| USB 2.0 | 1 (4-pin USB (type A)) |
| USB 3.0 | 3 (USB 3.0 (Type A)) |
| LAN | 1 (RJ-45) |
| Audio Interface | 1 (3.5-mm minijack x 3) |
| SATA III | 2 |
| BIOS Type | AMI |
| BIOS Features | PnP Support <br/>SMBIOS 3.0 Support <br/>64Mb AMI UEFI Legal BIOS with GUI support <br/>PXE boot <br/>ACPI 5.0 Support <br/>Jumperfree Support |
| Wake up/Sleep | Wake on LAN <br/>Wake on WAN |
| Hardware Monitoring | Chassis Fan Tachometer <br/>CPU Fan Tachometer <br/>CPU Temperature <br/>CPU Quiet Fan <br/>Chassis Temperature Sensing <br/>Chassis Quiet Fan <br/>CPU Fan multi-speed control <br/>Chassis Fan multi-speed control |
| Power Connectors Type | 24 pin |
| Cable Included | 2 x SATA 6Gb/s Cables |
| Included Accessories | I/O Shield <br/>CD, Software <br/>Quick Start Guide |
| Certifications | FCC, CE, WHQL, ErP/EuP ready |
| Form Factor | Mini-ITX |
| Height (mm) | 170 mm |
| Width (mm) | 170 mm |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 24 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Weight Brutto (kg) | 0.8 kg |
| Pack Weight Netto (kg) | 0.6 kg |
| Pieces in pack | 1 |
| Box Weight Brutto (kg) | 16 kg |
| Retail Packaging Net Weight Carton | 0.6 kg |
| Retail Packaging Net Weight Plastic | 0.6 kg |
| Packs in Box | 20 |
| Package Type | Retail |
